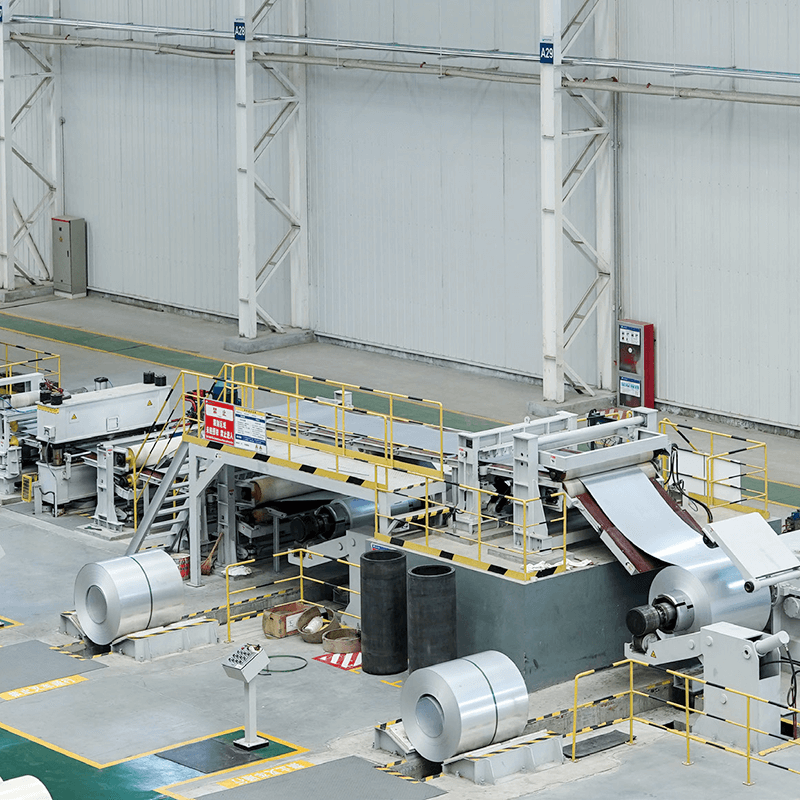

This production line is specifically designed to clean metal coils and sheets, automatically removing oils and other contaminants from the strip surface via alkaline/acidic solutions or surfactants.
Production Line | Substrate Type | Process Speed (m / min) | Substrate Thickness (mm) | Substrate Width (mm) | Production Line Length (m) | Energy Medium | Process Flow |
Cleaning line | Galvanized / Aluminum / Stainless steel | 20-250 | 0.1-3.0 | 700-1650 | 50-200 | Water / Electricity / Gas | Uncoiling → pinch feeding → multi-roll leveling → shearing → two-roll pinch feeding → welding → tensioning → chemical degreasing → roller brushing → electrolytic degreasing → multi-stage rinsing → hot air drying → tensioning → shearing → recoiling |
This production line is specifically designed to clean metal coils and sheets, automatically removing oils and other contaminants from the strip surface via alkaline/acidic solutions or surfactants.
Production Line | Substrate Type | Process Speed (m / min) | Substrate Thickness (mm) | Substrate Width (mm) | Production Line Length (m) | Energy Medium | Process Flow |
Cleaning line | Galvanized / Aluminum / Stainless steel | 20-250 | 0.1-3.0 | 700-1650 | 50-200 | Water / Electricity / Gas | Uncoiling → pinch feeding → multi-roll leveling → shearing → two-roll pinch feeding → welding → tensioning → chemical degreasing → roller brushing → electrolytic degreasing → multi-stage rinsing → hot air drying → tensioning → shearing → recoiling |
