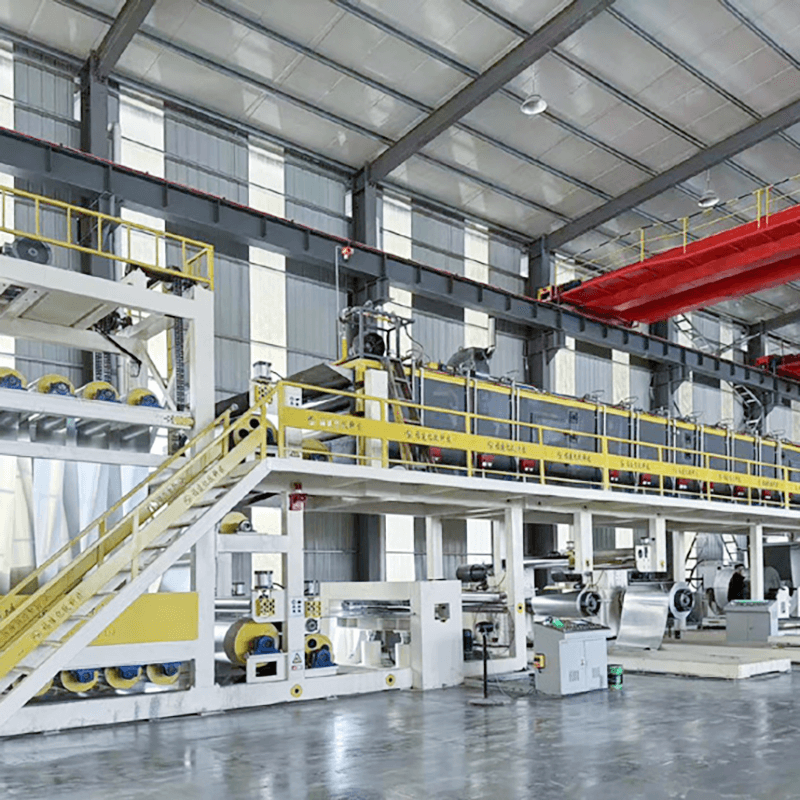

Lamination Production Line: This line applies a high-pressure, high-temperature or adhesive process to galvanized, alum-zinc, or zinc-aluminum-magnesium steel sheets, firmly bonding a polymer film onto the surface. The resulting products not only offer diverse decorative finishes but also provide excellent corrosion resistance and thermal insulation, making them widely used in construction, home appliances, and decoration.
Bimetal Composite Line: This technology combines two or more types of metals to fully leverage the advantages of each material. The composite products maintain high strength while also exhibiting a combination of properties such as wear resistance, corrosion resistance, sound insulation, and high toughness, offering significant cost-effectiveness and broad application in construction, decoration, and elevator industries.
Production Line | Substrate Type | Process Speed (m / min) | Substrate Thickness (mm) | Substrate Width (mm) | Production Line Length (m) | Energy Medium | Process Flow |
Metal roofing tile lamination production line | Galvanized sheet / Aluminum sheet / Stainless steel | 20-100 | 0.1-1.5 | 600-1500 | 25-80 | Water / Electricity / Gas | Unwinding → riveting → tension roller → looper → tension roller → no.2 main heating zone → front and back composite → front and back embossing → cooling → trimming → tension roller → no.3 accumulator → tension roller → no.4 protective film → shearing → recoiling |
Decorative panel lamination production line | Galvanized sheet / Aluminum sheet / Stainless steel | 10-50 | 0.1-3.0 | 600-1500 | 40-100 | Water / Electricity / Gas | Unwinding → riveting machine → tension roller → surface texturing → alkaline washing → rinsing → drying → passivation → drying → adhesive coating → oven → lamination → cooling → trimming → protective film → shearing → recoiling |
Bimetal composite production line | Galvanized sheet / Aluminum sheet / Stainless steel | 5-40 | 0.1-2.0 | 600-1500 | 60-120 | Water / Electricity / Gas | Unwinding → riveting → shearing machine → tension roller → looper → tension roller → texturing → rinsing → roller coating adhesive → oven → compositing → cooling → tension roller → looper → tension roller → protective film → shearing machine → recoiling |
Lamination Production Line: This line applies a high-pressure, high-temperature or adhesive process to galvanized, alum-zinc, or zinc-aluminum-magnesium steel sheets, firmly bonding a polymer film onto the surface. The resulting products not only offer diverse decorative finishes but also provide excellent corrosion resistance and thermal insulation, making them widely used in construction, home appliances, and decoration.
Bimetal Composite Line: This technology combines two or more types of metals to fully leverage the advantages of each material. The composite products maintain high strength while also exhibiting a combination of properties such as wear resistance, corrosion resistance, sound insulation, and high toughness, offering significant cost-effectiveness and broad application in construction, decoration, and elevator industries.
Production Line | Substrate Type | Process Speed (m / min) | Substrate Thickness (mm) | Substrate Width (mm) | Production Line Length (m) | Energy Medium | Process Flow |
Metal roofing tile lamination production line | Galvanized sheet / Aluminum sheet / Stainless steel | 20-100 | 0.1-1.5 | 600-1500 | 25-80 | Water / Electricity / Gas | Unwinding → riveting → tension roller → looper → tension roller → no.2 main heating zone → front and back composite → front and back embossing → cooling → trimming → tension roller → no.3 accumulator → tension roller → no.4 protective film → shearing → recoiling |
Decorative panel lamination production line | Galvanized sheet / Aluminum sheet / Stainless steel | 10-50 | 0.1-3.0 | 600-1500 | 40-100 | Water / Electricity / Gas | Unwinding → riveting machine → tension roller → surface texturing → alkaline washing → rinsing → drying → passivation → drying → adhesive coating → oven → lamination → cooling → trimming → protective film → shearing → recoiling |
Bimetal composite production line | Galvanized sheet / Aluminum sheet / Stainless steel | 5-40 | 0.1-2.0 | 600-1500 | 60-120 | Water / Electricity / Gas | Unwinding → riveting → shearing machine → tension roller → looper → tension roller → texturing → rinsing → roller coating adhesive → oven → compositing → cooling → tension roller → looper → tension roller → protective film → shearing machine → recoiling |
