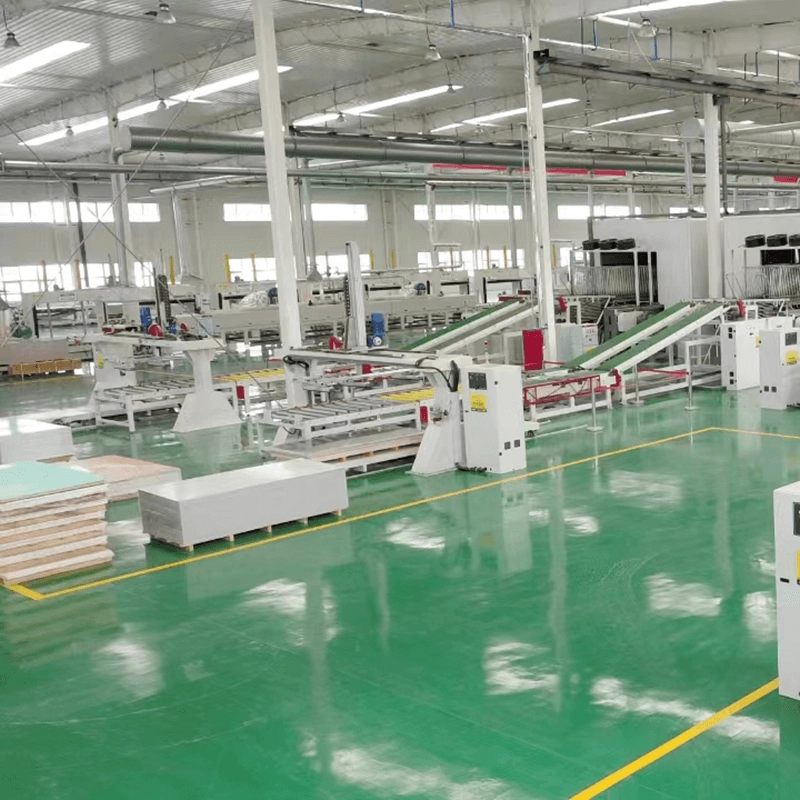

In today’s competitive manufacturing landscape, speed is no longer just an advantage; it is a survival requirement. For industries ranging from furniture to electronics, the finishing process often acts as the primary bottleneck. Traditional air-drying or heat-cured coatings take hours, stalling your workflow and inflating inventory costs. A modern UV Coating Line changes this dynamic entirely. By utilizing ultraviolet light to trigger an instantaneous chemical reaction, it transforms liquid coatings into a durable solid film in seconds.
Achieving true high-speed production requires more than just buying a machine. It demands a holistic understanding of how an automatic system integrates with your specific substrate and coating chemistry. This guide provides an expert look into optimizing your industrial finishing process. We will explore how to transition from manual bottlenecks to a streamlined, high-speed UV Coating Line that delivers consistent quality at scale.
The "heartbeat" of any high-speed production facility is the curing station. Unlike thermal ovens that rely on slow evaporation, a UV Coating Line uses high-intensity UV lamps to bond molecules instantly. This lack of "flash-off" time means products can be stacked, sanded, or shipped immediately after they exit the conveyor.
Efficiency starts with the light source. Modern systems utilize either Mercury vapor lamps or UV-LED arrays. LED technology is rapidly becoming the industrial standard because it reaches full power instantly without a warm-up period. It also produces significantly less heat, protecting heat-sensitive materials like thin plastics or veneers from warping. By eliminating cooling stages, you shave precious minutes off the total cycle time.
Zero Drying Time: Parts move directly to the next stage of assembly.
Reduced Footprint: Because you don’t need long drying tunnels, the entire UV Coating Line takes up less factory floor space.
Energy Efficiency: Power is only consumed when the sensors detect a part passing under the lamps.
To hit high-speed targets, you must match your application method to your product’s geometry. An automatic UV Coating Line typically employs one of two primary methods: Roller coating or Reciprocal spray coating. Choosing the wrong one can lead to material waste or uneven finishes that slow down the line for re-work.
For flat surfaces like flooring, cabinetry doors, or panels, a Roller UV Coating Line is the undisputed champion of speed. It applies a precise, thin layer of coating with nearly 100% material transfer efficiency. Because it is a continuous mechanical process, it can run at speeds exceeding 30-50 meters per minute without breaking a sweat.
If your products have complex 3D shapes, edges, or carvings, a Reciprocal spray UV Coating Line is necessary. These systems use automatic arms that move back and forth (reciprocate) over the conveyor. While slightly slower than rollers due to the physical movement of the spray guns, modern high-precision nozzles allow for high-speed application with minimal overspray.
Speed isn't just about how fast the conveyor moves; it's about how much "uptime" the machine maintains. An industrial UV Coating Line must be treated as a single, synchronized organism. If the sanding unit is too slow or the dust extraction is failing, the curing station becomes irrelevant.
Before the coating hits the surface, the substrate must be pristine. High-speed lines often include automatic brush cleaners and ionizers. They remove static and dust that would otherwise cause "fish-eyes" or bumps in the finish. If you have to stop the line to clean a dirty part, you lose the "high-speed" promise.
The viscosity of your Water-based or 100% solid UV coatings must remain stable. We recommend using temperature-controlled pumping systems. They ensure the coating flows perfectly regardless of the ambient temperature in your factory. Consistent flow equals consistent speed.
The difference between a standard setup and a modern UV Coating Line lies in the software. Human error is the greatest enemy of high-speed production. Automatic PLC (Programmable Logic Controller) systems monitor every variable in real-time, making micro-adjustments that a human operator would miss.
Modern lines use optical sensors to detect the size and shape of incoming parts. In a Reciprocal spray setup, the guns only fire when a part is underneath. This saves massive amounts of coating material. Furthermore, the system can automatically adjust the height of the UV lamps to maintain the optimal curing distance, ensuring a high-speed finish without burning the substrate.
We have found that predictive maintenance can increase line efficiency by up to 20% (data needs verification based on specific factory conditions). By tracking lamp hours and motor heat, the system alerts you before a failure occurs. This prevents the nightmare of an unplanned shutdown during a peak production run.
As environmental regulations tighten, many manufacturers are moving away from solvent-heavy finishes. A Water-based UV Coating Line offers a "best of both worlds" scenario: the speed of UV curing with the low-VOC (Volatile Organic Compound) profile of water-based chemistry.
In a Water-based system, the water must be removed before the UV light can cure the resins. This requires an intermediate "flash-off" or IR (Infrared) zone. While this adds a step, it allows for a much thinner, more natural-looking finish on wood products.
Easier Cleanup: Water-based systems are simpler to clean during color changes.
Reduced Fire Risk: Lower insurance costs and less stringent explosion-proof requirements for the factory.
Safety: It creates a healthier environment for your operators, reducing turnover and training time.

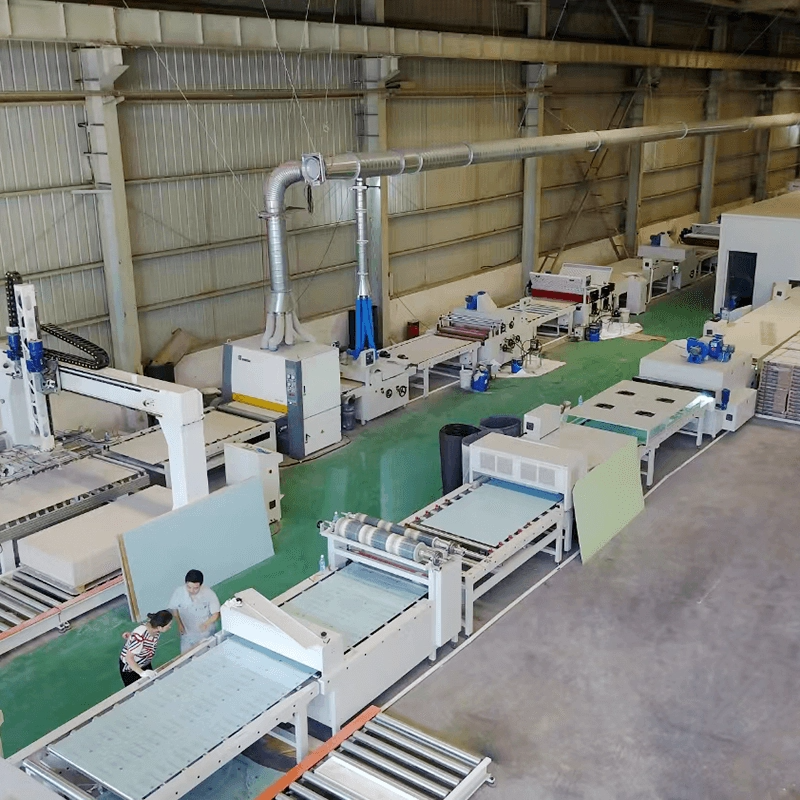

The Roller UV Coating Line is the workhorse of the wood and panel industry. To achieve high-speed results that look like a mirror finish, you must master the relationship between the application roller and the doctor blade.
A modern Roller coater uses different rubber densities (measured in Shore hardness) depending on the coating thickness required. A soft roller can "hug" slight variations in a wooden board, while a hard roller provides a perfectly flat finish on calibrated panels.
The Application Roller: Transfers the coating from the machine to the part.
The Doctor Roller: Regulates exactly how much liquid stays on the application roller.
The Conveyor: Must be perfectly synchronized to prevent "skid marks" or "ribbing" on the surface.
To maintain high-speed output, you need to manage the "bead" of coating between the rollers. If the rollers spin too fast without enough material, they create friction heat, which can partially cure the UV coating before it even touches the board. Experts use chilled rollers in extreme industrial environments to keep the chemistry stable. This ensures the UV Coating Line can run 24/7 without quality degradation.
When your product isn't flat, you need the flexibility of a Reciprocal spray UV Coating Line. This technology has advanced significantly, allowing for speeds that were previously only possible with manual teams of ten or more people.
In a high-speed Reciprocal spray setup, the "dwell time" (how long the spray stays on one spot) is calculated by an automatic computer. If the guns move too slowly, the coating runs; too fast, and you get a "dry spray" texture.
Airless vs. Air-Assisted: For high-speed industrial work, air-assisted systems are preferred for their balance of speed and finish quality.
Overlapping Patterns: The software ensures that each pass of the spray arm overlaps perfectly with the previous one, eliminating "tiger stripes."
High-speed spraying creates a lot of mist. A modern UV Coating Line uses "dry" or "water-wash" filtration to pull this overspray away from the product instantly. If the airflow is poorly managed, the mist settles back onto the wet coating, ruining the finish. By maintaining a clean internal environment, the automatic system ensures that every part exiting the line is showroom-ready.
Investing in a UV Coating Line is a significant capital expenditure. However, when we look at the industrial output, the return on investment (ROI) usually manifests much faster than traditional systems.
| Factor | Traditional Curing | Modern UV Coating Line |
| Drying Time | 2–24 Hours | < 10 Seconds |
| Labor Requirement | High (Manual Handling) | Low (Automatic Processing) |
| Floor Space | Massive (Drying Racks) | Compact (Inline) |
| Coating Waste | 30–50% (Spray) | < 1% (Roller) |
By switching to an automatic line, you can often reallocate 60-70% of your finishing labor to other areas of production. Because UV coatings do not evaporate, you are not "buying air"—every drop of liquid you purchase ends up on the product. Over a year of high-speed production, these savings can pay for the machine itself.
Transitioning to a high-speed UV Coating Line is the most effective way to eliminate the finishing bottleneck in your factory. Whether you opt for the raw speed of a Roller system or the 3D versatility of a Reciprocal spray unit, the key is integration. By combining automatic controls, industrial-grade durability, and modern Water-based chemistries, you can achieve a level of throughput that was once impossible. Speed is no longer a dream; it is a chemical reality triggered by the flip of a UV switch.
Q1: Can a UV Coating Line handle different colors?
Yes, but UV coatings are most efficient in clear coats or stains. Highly pigmented "solid" colors require more intense UV light or specialized "dual-cure" chemistries because the pigment blocks the light from reaching the bottom of the coating layer.
Q2: Is a Water-based UV Coating Line as fast as a 100% solid line?
It is slightly slower because you must evaporate the water before curing. However, it is still significantly faster than traditional water-based finishes and offers a thinner, high-quality aesthetic that many premium brands prefer.
Q3: How long do UV lamps last in an industrial setting?
Standard Mercury lamps usually last between 1,000 and 1,500 hours. Automatic LED systems can last up to 20,000 hours, which significantly reduces maintenance downtime and long-term costs.
