Views: 0 Author: Site Editor Publish Time: 2026-08-28 Origin: Site
In continuous manufacturing, the physical layout of your coating system dictates daily success. It directly controls cycle times, transfer efficiency, and overall throughput. Facility managers know poor spatial planning inevitably creates material handling bottlenecks. Bad layouts cause thermal inefficiencies during curing phases. They also increase cross-contamination risks between pre-treatment and coating baths. These combined issues cripple production rates and inflate defect counts.
We created this guide to provide plant engineers an evidence-based framework. You will learn how to evaluate and design a continuous production layout properly. It helps you balance tight footprint constraints alongside high-yield output demands. We will explore core configurations, critical zone structuring, and robust material handling solutions to elevate your manufacturing floor.
Continuous production requires prioritizing material handling flow (e.g., accumulation conveyors) over simple tank sequencing.
An efficient layout legally and operationally isolates the chemical pre-treatment zones from the high-voltage e-coat and high-heat curing zones.
Evaluating footprint constraints early prevents compromises in Ultrafiltration (UF) and reverse osmosis (RO) post-rinse stages, which are critical for finish quality.
Vendor selection should be based on their ability to model thermal dynamics, wastewater routing, and load capacities tailored to specific facility dimensions.
Designing a reliable layout starts by defining your operational baseline. You must establish strict success criteria before pouring any concrete. Continuous lines must balance fixed dwell times against continuous conveyor speeds. Electrodeposition typically requires a strict two to three minutes of dwell time. Parts moving too quickly will suffer from incomplete film builds. Parts moving too slowly reduce your daily yield.
Footprint optimization often forces difficult engineering compromises. You must evaluate the trade-offs between linear space and vertical space. Using multi-pass ovens saves valuable floor area. Vertical indexing systems allow parts to dip efficiently into deeper tanks. Plant directors must weigh these vertical solutions against building height limits.
Defect reduction serves as another primary success metric. Spatial separation of different stages minimizes chemical drag-out. It prevents cross-contamination between chemical zones. Cross-contamination remains the primary cause of rework in high-volume operations. Ensuring adequate drip zones between tanks directly reduces your defect rate.
Selecting the right baseline configuration determines how materials flow through your building. Engineers typically choose between three fundamental layout styles based on facility dimensions.
Straight-line layouts arrange all tanks and ovens in a single sequence. This design works best for high-speed, high-volume operations. It fits perfectly into narrow, highly elongated facility footprints. However, you must carefully consider the required linear floor space. Inline systems are often less flexible for future capacity expansion. Adding a new rinse stage requires moving everything downstream.
U-shaped layouts bend the process back toward the starting point. This configuration works best for centralizing your loading and unloading zones. Centralized zones significantly reduce forklift traffic and labor costs. It fits naturally into wider, shorter facility dimensions. A notable caveat involves the turn radii on conveyors. You must calculate these turns carefully against your maximum part dimensions to prevent collisions.

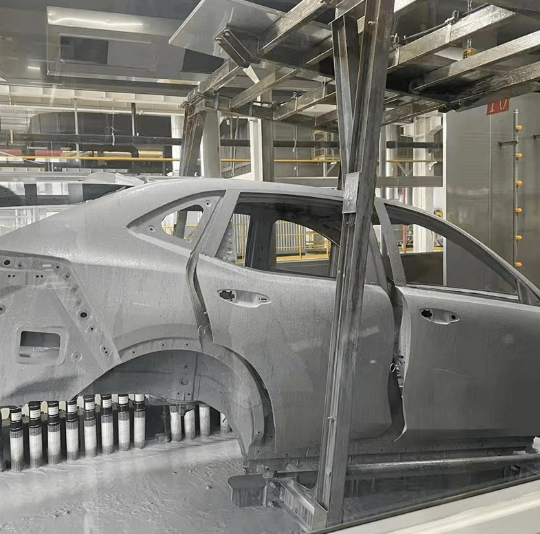

Modern production facilities increasingly rely on accumulation conveyors. These systems allow continuous line movement while permitting localized pauses. Parts can pause over critical tanks without halting the entire system. This maximizes throughput for the complex geometries found in an Automotive Electrophoresis Line. Accumulation systems decouple specific process times from main transport speeds, optimizing both quality and output.
A successful layout segregates distinct chemical and thermal processes. Treating these zones as independent micro-environments prevents quality degradation.
Pre-treatment dictates the ultimate adhesion of your coating. Layout requirements must include dedicated spaces for degreasing, rinsing, and phosphating or zirconium baths. You must address the spacing needed to prevent chemical drift. Acidic mists from pre-treatment tanks can degrade nearby equipment. Physical partitions or directional airflow systems help isolate these volatile stages.
Positioning the main tank requires meticulous planning. Every Electrophoretic Coating Line needs adjacent space for rectifiers and temperature equipment. You must localize chilling and heating units directly adjacent to the bath. Short piping distances reduce thermal loss. This proximity maintains the strict ±1°C variance required for continuous deposition. Exothermic reactions during coating generate significant heat. Immediate cooling responses prevent paint coagulation.
Post-rinse stages dictate your surface finish quality. You must design adequate drip zones between UF and RO tanks. Engineers must calculate precise drip angles and distances. These zones recover expensive paint solids back into the main tank. Proper drainage prevents wash-off defects before parts enter the curing oven.
Evaluating your curing strategy impacts your energy consumption heavily. Facilities usually choose between direct and indirect gas-fired ovens. Layout tactics should include using A-frame oven seals. Elevated oven designs effectively trap heat inside the curing chamber. This prevents heat from spilling onto the factory floor and overworking your HVAC system.
Coating Zone Parameters Summary
Zone Category | Primary Equipment | Critical Layout Priority |
|---|---|---|
Pre-Treatment | Spray washers, Immersion tanks | Chemical isolation and mist containment |
Electrodeposition | Main tank, Rectifiers, Chillers | Short piping routes for precise temperature control |
Post-Rinse | UF filters, RO water tanks | Extended drip angles for paint solid recovery |
Curing | Gas-fired ovens, Cooling tunnels | A-frame entry designs for heat retention |
How you move parts through the system is just as crucial as the chemistry itself. Material handling determines your true production ceiling.
Standard monorail continuous flow systems operate at a single, fixed speed. They offer simple maintenance and reliable operation. Power-and-free indexing systems offer greater flexibility. They allow carriers to stop and start independently. We compare these options based on part complexity. Simple parts favor monorails. Complex parts require power-and-free systems for varied drain angles.
Conveyor System Comparison Chart
Conveyor Type | Speed Control | Ideal Application |
|---|---|---|
Standard Monorail | Fixed / Uniform | High-volume, uniform part geometries |
Power-and-Free | Variable / Independent | Complex shapes requiring angled drainage |
Automated Hoist | Programmable / Batch | Extremely heavy sub-assemblies |
Automated overhead hoists represent another distinct transport category. Engineers prefer hoists over continuous tracks for heavy loads. Large automotive sub-assemblies often exceed monorail weight limits. Programmable logic controllers allow hoists to alter dwell times dynamically. This flexibility accommodates mixed-batch production schedules effortlessly.
Your coating line does not exist in a vacuum. You must plan the layout to interface smoothly with upstream operations. Consider how welding and stamping departments feed materials to the loading zone. Follow these sequential steps for optimal integration:
Map the specific exit points of your upstream welding stations.
Design buffer zones near the loading area to absorb production surges.
Align the unloading zone directly with downstream assembly staging areas.
Install quality inspection lighting stations immediately after the cooling tunnel.
Ignoring facility constraints during the design phase leads to catastrophic delays. You must audit your building's structural and environmental capacities early.
Liquid-filled tanks carry immense physical weight. Standard factory floors rarely support these concentrated loads. You must address the need for reinforced concrete trenching. Deep trenches contain catastrophic leaks safely. Epoxy-coated concrete protects your foundation from acidic pre-treatment chemicals. Engage civil engineers to verify soil compaction before installation.
Fluid and air management requires substantial architectural planning. Consider layout routes for piping to your wastewater treatment plant. Gravity-fed drainage requires specific floor slopes. Ducting layouts for volatile organic compound exhaust demand careful calculation. Curing ovens must vent directly through roof penetrations. Keep exhaust stacks far away from factory air intakes.
Industrial safety standards govern physical spacing. You must establish strict exclusion zones around high-voltage DC rectifiers. Ensure proper ventilation distances near the main coating bath. Operators need clear emergency exit routes. Compliance with regional fire codes often dictates maximum aisle lengths and mandatory sprinkler placements.
Choosing a layout partner requires looking beyond surface-level equipment lists. You must rigorously evaluate long-term operational efficiency and vendor capabilities.
Look deeply at long-term operational expenditure projections. Evaluate proposed layouts based on their energy use and chemical recovery rates. Inefficient oven layouts waste massive amounts of natural gas. Poorly designed drip zones force you to buy more virgin paint. Demand clear models showing expected energy consumption per processed part.
A rigid layout quickly becomes a bottleneck as your business grows. Ask vendors if the proposed layout allows modular additions. You might need extra rinse tanks later. You might need oven extensions if production scales up by twenty percent. Designs incorporating modular skid-mounted equipment offer superior scalability.
Hold your integration partners to strict modern standards. Demand three-dimensional spatial modeling before finalizing any blueprint. Reputable vendors use digital twin simulations. These simulations verify cycle times accurately. They also guarantee collision avoidance around tight conveyor turns. Here are critical items to demand from vendors:
Detailed 3D simulations showing carrier articulation around U-turns.
Thermal heat-mapping reports for the curing oven footprint.
Confirmed maximum weight load calculations for all overhead steel supports.
A clearly mapped utility consumption matrix for water and electricity.
Designing an electrophoretic line for continuous production demands meticulous planning. It is not a plug-and-play equipment purchase. It represents a massive, facility-wide architectural integration. Your success relies on harmonizing chemical processes with mechanical flow.
You must prioritize material flow over simple tank sequencing. Stringent thermal and chemical separation remains completely non-negotiable. Robust automation frameworks form the true foundation for achieving long-term production stability. These layout principles guarantee a higher yield and fewer defects.
Take action by auditing your current facility blueprint today. Map out your structural load limits and utility constraints thoroughly. Gather this data before requesting any vendor proposals. A clear understanding of your physical space ensures a faster, more accurate integration process.
A: A continuous line typically requires varying lengths from 50 meters to over 150 meters. The exact footprint depends heavily on your desired line speed and specific process dwell times. Facilities using a U-shape configuration can condense the linear length but require a much wider floor space overall. Inline configurations demand long, uninterrupted factory aisles.
A: An accumulation conveyor decouples specific process times from the constant speed of the main transport line. It allows heavy automotive parts to experience an extended dwell time in the e-coat bath while other carriers continue moving. This localized pausing optimizes both coating quality and overall factory throughput.
A: Chillers and heat exchangers must be placed in close physical proximity to the main tank. This minimizes piping distance and drastically reduces thermal loss. Close placement ensures an immediate cooling response to exothermic reactions during continuous deposition, maintaining the required strict temperature variance.
A: Direct 1:1 footprint retrofits are highly complex without major civil engineering modifications. E-coating requires deep, heavy fluid tanks that standard floors cannot support. It also requires extensive reverse osmosis infrastructure, reinforced concrete trenching, and entirely different wastewater routing compared to dry powder systems.
