Views: 0 Author: Site Editor Publish Time: 2026-06-08 Origin: Site
The confusion between standard spray primers and factory-applied e-coats consistently frustrates manufacturing and auto-refinish professionals. This misunderstanding directly causes costly rework, unnecessary panel stripping, and severely compromised corrosion resistance. Many technicians assume all black primers behave identically. They do not.
E-coat functions as a robust primer by providing a foundational protective layer. However, its application chemistry and physical bonding properties fundamentally differ from traditional liquid spray primers. Liquid primers rest on top of a roughened surface. Factory e-coats bond at a molecular level through an electrical process.
We designed this guide to provide technical evaluators, manufacturing engineers, and auto-refinish technicians an evidence-based operational framework. You will learn how to properly identify, test, and process e-coated parts on the shop floor. We also establish clear technical criteria for evaluating industrial coating investments and scaling production capacities safely.
Distinct Application: Electrophoretic coating relies on an electrical charge and immersion to bond a cathodic epoxy system to metal, creating a uniform, pinhole-free barrier superior to standard spray primers.
Retention Strategy: Genuine OEM e-coat should rarely be stripped to bare metal; its corrosion resistance is difficult to replicate in an aftermarket environment.
Field Verification: Coating stability must be validated using a polyurethane-grade solvent wipe test before applying sealers or topcoats.
Infrastructure Reality: True OEM e-coat requires a high-voltage, high-heat infrastructure, whereas aftermarket "e-coat primers" are chemically matched 1K/2K direct-to-metal (DTM) substitutes designed for localized repair.
To process metal parts correctly, technicians must first understand how electrophoretic coating fundamentally differs from conventional primer paints. They share the same basic goal of protecting bare metal. However, they achieve this goal through completely different application physics.
Standard liquid primers rely entirely on mechanical adhesion. Technicians must first abrade the metal surface using heavy-grit sandpaper or sandblasting equipment. This abrasion creates microscopic scratches, known as a mechanical tooth. Atomized spray primer then fills these scratches. Once the carrier solvents evaporate, the dried primer clings to the roughened surface.
The immersion process takes a different approach. Positively charged paint particles, typically a cathodic epoxy formulation, suspend in an aqueous bath. Operators lower grounded metal components into this bath. A direct current (DC) voltage forces the epoxy particles to migrate toward the metal. This electrical attraction creates a dense, highly cross-linked bond. You do not need aggressive mechanical abrasion to achieve superior adhesion.
Atomized spray applications suffer from line-of-sight limitations. Spray guns cannot push paint into tight crevices, hidden internal cavities, or complex folded hems. Paint also tends to pull away from sharp edges due to surface tension. This phenomenon leaves edges vulnerable to premature rust.
Immersion coating solves the line-of-sight problem. As long as the liquid bath touches the metal, the coating deposits evenly. The electrical resistance of the paint film naturally limits the coating thickness. Once a specific area reaches the target film build—typically between 1.2 and 1.8 mils—the electrical insulation stops further deposition. The paint particles then seek out uncoated bare metal deeper inside the component cavities. This self-regulating behavior guarantees perfectly uniform coverage over highly complex geometries.
Engineers classify protective coatings into two main categories: sacrificial coatings and barrier coatings. Understanding this distinction prevents disastrous rework decisions.
Many traditional industrial primers, such as zinc-rich epoxy primers, offer sacrificial protection. They contain heavy loads of zinc dust. When moisture penetrates the paint film, the zinc corrodes first. It sacrifices itself to protect the underlying steel.
E-coat acts as a physical conversion coating barrier. It creates an impermeable shield against oxygen and moisture. The highly cross-linked epoxy structure prevents electrolytes from reaching the metal substrate. If a rock chip scratches the surface, this dense barrier effectively stops the scratch from propagating into widespread sub-film corrosion. It seals the metal perfectly without relying on heavy metals like zinc.
Feature | Traditional Spray Primer | Electrophoretic Coating |
|---|---|---|
Adhesion Method | Mechanical tooth (abrasion required) | Electrical attraction (DC voltage) |
Coverage Capability | Line-of-sight only; misses internal cavities | 100% submersion; coats hidden areas evenly |
Film Thickness | Variable depending on operator skill | Self-regulating (Uniform 1.2 - 1.8 mil) |
Protection Type | Often sacrificial (zinc-based) | Physical impermeable barrier |
A black finish on a replacement panel does not guarantee a high-quality factory coating. Many aftermarket parts arrive coated in cheap transit enamels. Manufacturers apply these low-grade paints simply to prevent flash rust during oceanic shipping. If a technician applies topcoat over a cheap transit paint, the entire paint system will eventually peel off.
Shop managers must establish a strict pass/fail testing protocol. You cannot integrate any new aftermarket part into your production or repair cycle without validating the baseline coating. Visually, genuine cathodic epoxy and cheap transit enamels look nearly identical. Both present a smooth, semi-gloss black finish. You must rely on chemical resistance testing rather than visual inspection.
We recommend standardizing the following solvent wipe test across your facility. This simple procedure takes less than five minutes and prevents hours of costly rework.
Select the Solvent: Obtain a high-grade urethane thinner or a polyurethane-grade reducer. Do not use mild wax and grease removers, as they lack the aggressive chemical profile needed for this test.
Prepare the Cloth: Generously saturate a clean, lint-free shop towel or microfiber rag.
Select the Test Area: Choose a discrete, inconspicuous section of the aftermarket panel, such as a back corner or an inner flange.
Execute the Rub: Rub the saturated cloth aggressively back and forth over the test area. Apply moderate downward pressure for approximately 15 to 20 seconds.
Observe the Results: Remove the cloth and inspect both the rag and the panel surface immediately.
Pass Condition: A genuine, fully cross-linked epoxy coating remains completely hard, stable, and colorfast. You might see a faint dark smudge on the rag, but the paint film will not degrade. If it passes, you can proceed confidently with standard scuffing and topcoating procedures.
Fail Condition: A substandard transit paint will soften immediately. It may wrinkle, blister, or dissolve entirely down to bare metal. Heavy black pigment will transfer heavily onto the cloth. You must mechanically strip this failed coating completely. Remove all traces of the transit paint down to bare steel or aluminum before applying your own direct-to-metal (DTM) primer.
Once you verify the stability of the factory coating, you must adjust your surface preparation habits. Many old-school technicians instinctively grab heavy 80-grit sandpaper and grind replacement panels down to bare metal. This practice destroys one of the most durable corrosion barriers available.
The industry consensus strongly favors retaining intact, genuine factory coatings whenever possible. Your preparation approach should depend entirely on the condition of the part upon arrival.
For pristine surfaces: Avoid aggressive dual-action (DA) sanding. You only need to create a microscopic mechanical tooth for the next layer of paint. A light scuffing procedure works best. Use 320-grit or 400-grit abrasives. Alternatively, a red non-woven scuff pad provides excellent results. Thoroughly clean the dust, and the panel is ready.
For minor blemishes or localized rust: Shipping damage happens frequently. If you spot a deep scratch or a small patch of rust, do not strip the entire panel. Spot-sand the affected area using 180-grit sandpaper to remove the oxidation. Feather out the edges smoothly. Apply a high-quality, targeted DTM primer over the bare metal spot. Leave the surrounding factory coating intact.
Applying topcoat directly over a verified cathodic epoxy base creates a powerful dual-coat system. This combination exponentially improves the environmental lifespan of the part. The epoxy base layer provides unmatched adhesion and corrosion sealing. The topcoat layer provides ultraviolet (UV) protection, chemical resistance, and aesthetic appeal.
This dual-coat approach accommodates various finish types. You can apply liquid polyurethane paints for automotive gloss. You can apply heavy powder coatings for industrial abrasion resistance. You can even apply specialty aerospace finishes. The smooth, pinhole-free nature of the base layer ensures maximum aesthetic smoothness in the final finish.
Shop efficiency relies on speed. Intact factory coatings offer a massive advantage regarding turnaround times. If the panel passes the solvent test and remains free of physical damage, you can often utilize a wet-on-wet primer sealer.
Thoroughly clean and degrease the part. Apply a compatible non-sanding primer sealer directly over the un-sanded or lightly scuffed factory finish. Let the sealer flash off according to the manufacturer's recommendations. You can then immediately apply your basecoat color. This eliminates the need for aggressive etch primers and skips the heavy sanding phase entirely, shaving hours off the repair cycle.
Original Equipment Manufacturers (OEMs) rely on automated coating technologies for mass production. For manufacturing leaders weighing a transition from liquid spray booths to immersion technology, understanding the necessary infrastructure scale proves critical. Installing a genuine electrophoretic coating line demands specific engineering prerequisites.

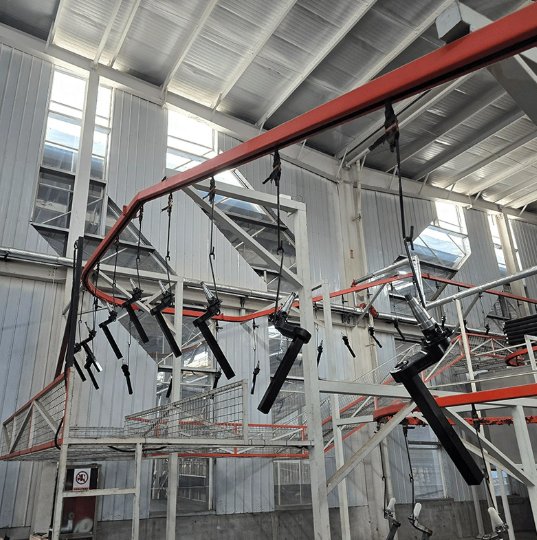

A true immersion facility requires a heavy physical asset footprint. You cannot simply place a small tub in a corner. The process dictates a continuous, multi-stage conveyor system. Parts must travel through multiple cleaning, rinsing, coating, and curing zones.
The primary paint tanks often scale up to 17,000 gallons or more. These massive vats accommodate large, multi-ton chassis components, such as fire truck frames or commercial vehicle bodies. The electrical infrastructure must handle extreme demands. Rectifiers need to deliver consistent, clean 400V DC power to the submerged parts to drive the deposition process. The paint bath itself generates heat during this electrical transfer, requiring dedicated chiller systems to maintain optimal bath temperatures.
Following deposition, parts must undergo high-temperature curing. The polymer cross-linking process requires significant heat energy. Ovens must consistently reach and maintain a minimum core temperature of 350°F (175°C) for at least 20 to 30 minutes. Conventional spray booth ovens rarely exceed 160°F, meaning complete oven replacement becomes mandatory during facility upgrades.
Despite the heavy infrastructure demands, immersion technology offers compelling environmental compliance benefits. Traditional liquid spray operations struggle constantly with Volatile Organic Compound (VOC) emissions. Heavy solvents evaporate into the atmosphere, requiring expensive air filtration and thermal oxidizer systems.
Cathodic epoxy systems utilize water as their primary carrier fluid. This results in ultra-low VOC emissions. A typical immersion bath might generate as little as 0.1 lbs of VOC per gallon. By contrast, conventional liquid spray primers frequently exceed 1.0 lbs per gallon. This massive reduction helps facilities adhere easily to stringent EPA standards. It also ensures compliance with international Restriction of Hazardous Substances (RoHS) directives, making the final products globally exportable.
Not every operation can support a full immersion line. Small job shops, restoration garages, and collision repair centers need practical alternatives. The aftermarket industry has developed high-tier 1K and 2K aerosol products formulated specifically to mimic OEM finishes.
These advanced aerosols color-match the distinct semi-gloss black appearance of factory parts. They function as direct-to-metal barrier coatings. Technicians use them for localized repairs, such as coating welded seams, core supports, or cut floor pans. These products typically offer rapid 20-25 minute dust-dry times. While they do not replicate the 400V electrical bond of a true immersion tank, they provide excellent corrosion resistance for localized shop floor repairs.
Engineers often evaluate multiple metal finishing technologies during the design phase. Comparing immersion technology against established methods like hot-dip galvanizing and powder coating helps clarify the best use case for your specific application.
Hot-dip galvanizing dominates heavy infrastructure projects like highway guardrails and structural steel framing. The process submerges steel into a vat of molten zinc. This zinc forms a metallurgical bond with the steel, providing massive sacrificial protection.
Galvanizing creates a highly durable, but incredibly rough and inconsistent surface finish known as spangle. It proves completely unsuitable as a base layer for automotive-grade high-gloss topcoats. Furthermore, the galvanizing process generates significant hazardous emissions, heavy zinc smoke, and requires extreme industrial ventilation.
Conversely, immersion coating provides a physical barrier rather than sacrificial protection. It emits negligible hazardous air pollutants (HAPs). More importantly, the resulting paint film cures remarkably smooth. It serves as the ideal foundational substrate for premium automotive finishes.
Powder coating relies on electrostatic spray technology. Operators spray dry plastic powder toward a grounded part. The powder sticks via static electricity, and a high-heat oven subsequently melts it into a durable shell. Powder offers excellent hardness and scratch resistance.
However, powder coating severely struggles with the Faraday cage effect. When spraying inside tight corners, deep channels, or complex angles, the static charge repels the powder particles. These areas remain bare and vulnerable to rust. Operators often have to manually touch up these blind spots.
Liquid submersion guarantees 100% internal coverage. The aqueous bath flows easily into the tightest channels, nullifying the Faraday cage effect. For maximum durability in incredibly harsh environments, engineers frequently combine both methods. Immersion coating serves as the ultimate internal primer, completely sealing the metal. A powder-coated topcoat then applies over the exterior surfaces, providing unmatched mechanical hardness.
E-coat is unequivocally a specialized primer system. It performs the fundamental job of a primer by adhering to raw metal and providing a foundation for topcoats. However, its processing requirements, chemical composition, and unique application methods place it in a distinct category far above standard spray variants.
Facility managers and technicians must implement preservation tactics to maximize this technology. For auto-repair facilities, standardizing the solvent wipe test SOP remains the most critical next step. Adopting this quick test will drastically reduce labor waste spent on unnecessary panel stripping and redundant material application.
For industrial manufacturers, the decision involves careful engineering evaluation. You must weigh the substantial initial asset requirements of high-voltage tanks and curing ovens against operational benefits. Lowering VOC emissions, meeting global EPA/RoHS compliance easily, reducing corrosion warranty claims, and saving massive amounts of topcoat material usage represent the true long-term value of adopting automated immersion technology.
A: No. If the factory coating passes the solvent wipe test, a light scuffing and a standard primer sealer are sufficient. Etch primers rely on harsh acids to bite into bare metal. Applying them over a fully cured cathodic epoxy is redundant and sometimes counterproductive, as the acid can negatively interact with the stable polymer layer.
A: Yes. The cathodic epoxy system provides incredible moisture sealing but remains highly sensitive to direct ultraviolet light. If you leave the coating un-topcoated and exposed to the sun for extended periods, it will chalk, fade, and eventually degrade. You must seal or paint it for any exterior application.
A: Yes, premium aftermarket 1K or 2K aerosol repair products are specifically formulated for this purpose. They act as direct-to-metal (DTM) barrier coatings. They are excellent for localized repairs where the factory finish was compromised, such as freshly welded seams, engine bays, or sanded rust spots.
