Surface treatment bottlenecks frequently force manufacturers into frustrating compromises. You often have to choose between throughput speed, coating consistency, and material waste. Traditional spray methods struggle to cover complex metal substrates evenly. Overspray wastes expensive materials. Hidden recesses remain vulnerable to rapid corrosion because paint simply cannot reach them.
An electrophoretic coating line resolves these exact pain points. By using electrical current to deposit paint onto metal, it guarantees uniform thickness across complex geometries. Originally commercialized in the 1960s for automotive primers, this immersion process completely eliminates overspray while boosting production speed.
This guide unpacks the hardware, chemical realities, and operational economics of electrophoretic coating. We explore facility implementation risks to help plant managers evaluate viability. You will learn how to match resin chemistry to your specific production goals and facility constraints.
Maximized Material Yield: Recovers and reuses up to 99% of paint through closed-loop ultrafiltration.
Total Cost of Ownership (TCO) Advantage: Yields up to 3x more coated parts per kilogram of paint compared to powder coating, provided the production volume justifies the initial capital expenditure.
Elimination of the Faraday Cage Effect: Easily coats deep recesses, hidden areas, and complex internal geometries where spray methods fail.
Strict Operational Demands: Requires meticulous tank maintenance, exact temperature controls, and high-purity deionized (DI) water to prevent costly bath contamination.
To understand why this system outperforms traditional methods, you must look at the underlying engineering. We can deconstruct the physical hardware and chemical processes into three main pillars. Coating adhesion relies entirely on flawless preparation, precise fluid dynamics, and advanced filtration.
Metal preparation dictates the success of your entire finishing operation. If you fail to clean the substrate properly, the paint will inevitably peel. A standard high-performance system relies on a rigorous 9-step pretreatment sequence.
Alkaline Cleaning (Spray): High-pressure nozzles physically blast away heavy surface soils and loose debris.
Alkaline Cleaning (Immersion): Submerging the parts dissolves persistent mill oils and deep-seated grease.
City Water Rinse: Removes residual alkaline chemicals to prevent downstream contamination.
Surface Activation: Conditions the metal grain structure to accept the phosphate coating evenly.
Zinc Phosphate Application: This is the crucial step. The system holds the bath at 120-160°F for exactly 90 seconds. It grows microscopic zinc crystals on the metal. These crystals create the physical anchor points for paint bonding.
City Water Rinse: Flushes away unreacted phosphate chemicals.
Non-Chrome Sealer: Neutralizes any remaining water-soluble salts. It seals the phosphate gaps to prevent humidity-induced blistering later.
Deionized (DI) Water Rinse: Removes trace minerals left behind by city water.
Secondary DI Water Rinse: Guarantees a perfectly sterile, high-resistance surface before the paint bath.
The main paint tank looks like a simple vat of color. In reality, it is a highly volatile, carefully balanced chemical ecosystem. Deionized water makes up roughly 75% of the total volume. You must maintain this water at highly specific micro-ohm ranges to control electrical conductivity. If conductivity spikes, paint deposition becomes chaotic.
The remaining 25% consists of several active chemical ingredients. Polymer resins serve as the structural backbone of the finish. They provide the actual physical barrier against corrosion. Pigment pastes deliver the desired color and visual gloss. Solubilizers, usually lactic or acetic acid, force the solid resins to disperse evenly throughout the water. Finally, operators blend in 1-3% organic co-solvents. These co-solvents lubricate the mechanical pumping systems. More importantly, they prevent a defect called "solvent pop." When parts enter the bake oven, co-solvents ensure trapped gasses escape slowly before the paint film completely hardens.
Integrating an electrophoretic coating line demands sophisticated fluid management hardware. As electrical current forces paint onto the metal, the chemical reaction continuously generates excess acid. If left unchecked, this acid would rapidly lower the bath pH and destroy the paint emulsion.
Anodes and Dialysis Cells: Systems use stainless steel anodes encased in semi-permeable dialysis cells. These cells act like a kidney. They pull the excess acid out of the main bath and flush it into a separate waste stream, keeping the pH perfectly stable.
Cooling and Filtration: The electrical process generates massive amounts of heat. Plate heat exchangers constantly cycle the fluid to regulate the temperature. Meanwhile, heavy-duty bag filters and magnetic wands capture rogue particulates and metal shavings before they ruin a finish.
Ultrafiltration (UF) Tanks: This module makes the process incredibly efficient. The UF system squeezes clear liquid—called permeate—out of the paint bath. Sprayers use this permeate to wash off any loose, un-deposited paint clinging to parts as they exit the tank. This runoff drops right back into the main bath for zero-waste operation.
When evaluating different surface treatment options, you need hard data. Liquid spray and powder coating both have their place in manufacturing. However, when you scale up production, the mathematical advantages of an immersion process become impossible to ignore. We can build a strict, variable-controlled comparison to highlight these differences.
Let us look at a standardized data model. Imagine your goal is to achieve a 12-micron minimum coating thickness on a standard steel part. You have exactly one kilogram of paint containing 50% solid materials. How many parts can you successfully coat?
Coating Method | Part Yield (per 1kg paint) | Typical Thickness Range | Overspray Waste Factor |
|---|---|---|---|
Electrophoretic Coating | ~3,600 parts | 12 - 50 microns | Virtually Zero (Recovered) |
Liquid Spray | ~2,250 parts | 25 - 100 microns | Moderate (Lost to air) |
Powder Coating | ~1,200 parts | 50 - 250 microns | High (Difficult to reclaim) |
The numbers reveal a massive gap in efficiency. Powder coating yields only about 1,200 parts. It requires much higher film builds to achieve full coverage, and reclaiming oversprayed powder often introduces contamination risks. Liquid spray improves the yield to roughly 2,250 parts but still loses material to the surrounding air. An electrophoretic coating setup maximizes your materials. It easily yields 3,600 finished parts from that same kilogram of solids.
Precision fundamentally alters how you design your finishing racks. Powder coating applies thickly, usually landing between 50 and 250 microns. This thickness easily bridges small gaps or clogs machine threads. E-coat operates in a much tighter window, typically laying down just 12 to 50 microns of material.
The physics of the immersion bath create an automatic stopping point. The wet paint acts as an electrical insulator. As the layer builds on the metal, it increasingly resists the electrical current. Once the part reaches the exact programmed thickness, the current can no longer pass through. Deposition stops automatically. This self-limiting behavior allows for ultra-dense racking. You can pack parts inches apart on a conveyor. They will never stick together, and the current will naturally seek out any uncoated bare metal until the part is perfectly sealed.
Manual touch-ups drain factory resources. Complex parts coated by hand or automated spray guns often suffer from runs, drips, and bare spots inside recessed channels. Workers must manually sand down defects or re-spray hidden areas. The immersion technique eliminates this entire secondary workflow. Because the fluid penetrates every crevice, you essentially eliminate manual rework. The savings in direct labor hours heavily offset the initially higher costs of chemical management.
You cannot buy a one-size-fits-all chemical bath. You must match the resin chemistry to your specific industry outcomes and substrate conditions. The polarity of your electrical setup changes the chemical properties of the final finish. You generally choose between three core formulations.
In a cathodic system, the metal substrate acts as the negative cathode. The paint bath carries a positive charge. The positive paint ions rush toward the negatively charged parts.
Cathodic epoxy provides the absolute highest level of corrosion defense available. It survives punishing salt-spray tests better than any other option. Automotive manufacturers use it exclusively for vehicle chassis and underbody parts. Heavy machinery builders coat A60 galvanneal steel crane bodies in epoxy. It is the definitive choice for hidden structural components requiring ultimate durability. However, epoxy breaks down quickly under direct sunlight. It requires a protective topcoat if the part lives outdoors.
Anodic systems reverse the electrical flow. The metal substrate receives a positive charge. The paint bath holds a negative charge.
Anodic acrylic formulations excel at weathering the elements. They offer outstanding resistance to ultraviolet degradation. Colors remain vibrant and do not chalk or fade after years of sun exposure. You will commonly see anodic acrylics on outdoor agricultural equipment, decorative fencing, and architectural fixtures. The trade-off is lower overall corrosion resistance compared to epoxy. It serves best where aesthetics outrank extreme salt protection.
Engineers eventually combined the two technologies. Cathodic acrylic gives you the strong corrosion protection of a cathodic electrical process, paired with the color stability of an acrylic resin.
This hybrid approach acts as an excellent single-coat solution. It eliminates the need for a secondary topcoat spray. Manufacturers highly favor it for premium consumer appliances, lawn mowers, and exterior HVAC housings. It balances long-term rust prevention and showroom-quality visual appeal.
Every industrial process carries inherent limitations. Building trust requires transparently addressing the maintenance realities and specific scenarios where this technology might fail. You must look at an electrophoretic coating line through a skeptical lens to avoid expensive deployment mistakes.
Flexibility is the biggest casualty of this process. If your product catalog requires offering parts in red, blue, green, and yellow, this system is the wrong choice. Changing colors in a massive 10,000-gallon immersion tank is prohibitively expensive and logistically maddening. You have to drain the system, clean miles of piping, and recharge the entire bath. Therefore, it remains strictly a high-volume, single-color process. Most plants run a permanent black or gray primer, applying custom colors later via powder or spray topcoats.
While immersion reaches hidden recesses flawlessly, it struggles with razor-sharp geometry. Extremely sharp, laser-cut edges pose a unique physical challenge. As the paint film enters the high-heat curing oven, surface tension causes the liquid to pull away from sharp corners before it hardens. This leaves the edges exposed to rust.
You have to plan for this limitation during fabrication. You either need specialized edge-protection chemical formulations, or you must introduce mechanical edge-rounding processes (like vibratory deburring) prior to racking the parts.
Operating a massive electrified liquid bath introduces bizarre, hyper-sensitive maintenance vulnerabilities. You must maintain the physical infrastructure flawlessly.
Tank Liner Failures: The main tank requires thick fiberglass or epoxy insulation liners to prevent the electrical current from grounding out into the factory floor. These liners are incredibly sensitive during installation. If a technician accidentally drips human sweat onto the bare steel before applying the liner, disaster follows. The salt in the sweat becomes trapped. Once filled with fluid, osmosis forces water through the liner to dilute the trapped salt. This causes severe osmotic blistering. The blister disrupts the electrical field and ruins paint deposition across the entire tank.
Holiday Testing: To prevent these leaks, commissioners must perform mandatory high-voltage testing. Technicians sweep a high-voltage wand over the dry tank liner. If a microscopic pinhole (a "holiday") exists, a spark jumps through the hole to the steel. You must patch every single holiday before loading chemicals.
Once you accept the operational realities, you can begin architectural planning. Integrating this equipment into an existing facility requires careful shortlisting logic. You must match the system footprint to your volume demands.

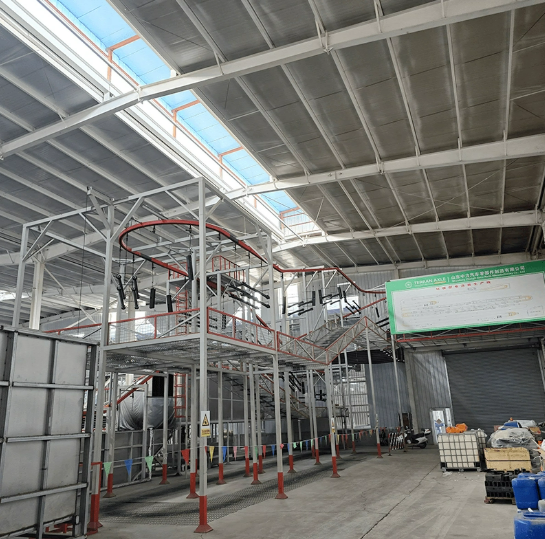

Your layout depends entirely on your production volume and ceiling height. Continuous conveyor lines dominate high-volume automotive plants. The parts travel continuously through long series of staging tanks. This requires a massive horizontal footprint.
Conversely, programmable hoist systems—often called square-transfer lines—handle lower volumes or heavy batch processing. A robotic crane lifts racks vertically, moves them over, and dunks them into adjacent tanks. This design leverages vertical space and dramatically shrinks the required square footage of your plant floor.
Before breaking ground, evaluate your site’s baseline utility capacity. The line consumes massive amounts of high-purity water. You need robust, industrial-scale Reverse Osmosis (RO) or DI water generation equipment on site. You also need dedicated wastewater treatment capabilities to handle the acidic purge from the dialysis cells.
On the environmental side, this technology provides immense compliance advantages. The water-based chemistry contains virtually zero Hazardous Air Pollutants (HAPS) and generates ultra-low Volatile Organic Compounds (VOCs). It easily satisfies strict urban emission regulations without requiring expensive factory exhaust scrubbers.
Choosing the right integration partner makes or breaks the project. Demand strict technological standards from your vendors. They must provide advanced Programmable Logic Controller (PLC) integration for continuous bath conductivity monitoring. Do not rely on manual chemical testing. Insist on automated dosing systems that trickle in resins and pastes based on real-time sensor data.
Furthermore, demand structural guarantees. Your vendor must guarantee an "SP 5 Near-White" abrasive blasting standard for the interior steel before they install the tank liners. Cutting corners on tank preparation always results in catastrophic downtime.
An electrophoretic coating line is not a flexible, quick-change tool for custom job shops. Instead, it serves as a high-capital, ultra-high-efficiency engine designed for mass-producing uniformly coated, corrosion-resistant parts. It solves the critical bottlenecks of inconsistent spray thickness, wasted material, and intense manual labor.
By leveraging electrical currents and precise chemical baths, you achieve perfect coverage on complex geometries. If your manufacturing environment demands long runs of identical parts requiring serious environmental protection, this process dramatically outperforms traditional powder and liquid spray methods.
To move forward, we encourage you to request an economic audit or a pilot run. Send your most complex, hard-to-coat parts to an integration partner. Validate the thickness uniformity, test the bath compatibility, and verify the physical results before committing capital to a full-scale plant integration.
A: No. Because it is an immersion process driven by electrical current passing through a liquid bath, it fully coats recessed areas and deep internal channels. Powder and liquid spray guns create static fields that repel paint from tight corners, causing the Faraday cage effect. Immersion completely bypasses this issue.
A: While historically utilized almost exclusively as a highly durable primer (via Cathodic Epoxy), chemical advancements have changed this. Modern Cathodic Acrylic formulations allow the process to serve as a durable, UV-resistant topcoat in single-color applications like home appliances and lawn tractors.
A: Standard bake ovens require the actual metal parts to reach temperatures of 275°F to 350°F for a sustained period, typically 20 minutes. This intense heat properly cross-links the polymer resins. However, chemical manufacturers are actively developing emerging lower-cure formulations to save energy.
