Coating complex metal parts presents a unique manufacturing hurdle. Inner cavities, tubular assemblies, and varying thicknesses resist uniform coverage. Traditional spray methods often pool in tight corners. They frequently miss deep blind holes entirely. This compromises strict engineering tolerances. It also risks aggressive localized corrosion. Fortunately, modern finishing technologies offer a robust solution. We define electrophoretic coating (often called e-coating, electrocoating, or cathodic electrodeposition) as a water-based, electrically driven process. It provides highly precise and uniform coverage across difficult geometries.
This article serves as a technical evaluation guide. We wrote it specifically for manufacturing engineers and product designers. You will explore critical performance metrics and cost-efficiency drivers. We outline material limitations and robust quality assurance standards. By the end, you can confidently determine if this process fits your production line.
Precision Tolerances: Achieves highly uniform film builds (typically 15 μm to 30 μm), making it ideal for precision-machined parts where thick coatings would cause assembly failures.
Unmatched "Throwpower": The electrical deposition process naturally forces the coating into deep recesses, blind holes, and cooling vanes that spray methods cannot reach.
High Material Yield: Ultrafiltration recovery systems allow for >95% material utilization, significantly lowering ongoing consumable costs.
Proven Longevity: Capable of withstanding extreme environmental conditions, frequently passing >1,000-hour ASTM B117 salt spray tests.
When electricity meets liquid chemistry, precise deposition occurs. The process relies heavily on a unique self-limiting principle. Parts submerge into a chemical bath. Electricity flows through the liquid. As the paint deposits onto the conductive substrate, it acts as an electrical insulator. Once the paint reaches your target thickness, electrical resistance spikes. This naturally slows the deposition. It ultimately stops the coating process entirely. You achieve a perfectly uniform layer every single time.
Let us compare Cathodic and Anodic systems. They serve different manufacturing needs.
Cathodic (Dominant): The metal part becomes the cathode. It carries a negative charge. This method currently dominates industrial sectors. It accounts for roughly 70% of global applications. The automotive industry relies heavily on it. It provides vastly superior corrosion resistance for chassis and underbody parts.
Anodic: The metal part acts as the anode. It carries a positive charge. Manufacturers primarily use it for specific lightweight metals. It suits less demanding indoor applications. It often costs less but sacrifices heavy-duty weatherability.
Understanding the full cycle requires reviewing the four-step timeline. A standard process unfolds like this:
Pretreatment: Degreasing, cleaning, and phosphating take place. This removes surface oils. It prepares the bare metal for optimal paint adhesion.
Electrodeposition Bath: Parts submerge fully in a paint emulsion. Direct current voltage applies. This usually ranges from 25V to 400V. Paint particles migrate directly to the metal surfaces.
Ultrafiltration & Rinse: Systems reclaim undeposited paint rapidly. They wash excess liquid off the parts. This maximizes material yield and reduces environmental waste.
Bake & Cure: Thermal cross-linking occurs inside an industrial oven. High heat bakes the molecules. This hardens the finish for maximum physical durability.
Translating technical features into business outcomes reveals clear advantages. Geometric complexity demands exceptional throwpower. This term describes how well the bath penetrates invisible areas. Automotive chassis, marine equipment, and complex tubular furniture rely on this trait. Conventional spray methods leave deep recesses highly vulnerable. The liquid electrocoating process naturally seeks out bare metal spots. It coats the interior walls of metal tubes flawlessly.
Strict tolerance management drives many engineering decisions. Spray-applied paints suffer from highly variable thicknesses. They tend to pool thickly in corners. They thin out dangerously on sharp edges. Conversely, this electrical process guarantees an exact 15–30 μm layer. You can coat precision-machined parts confidently. You will not ruin critical assembly tolerances. Threads and hinges remain perfectly functional.
Environmental regulations and cost efficiency matter deeply. Water-based formulas contain very low volatile organic compounds (VOCs). Traditional solvent spray systems waste massive amounts of chemical overspray. Conversely, automated systems utilize ultrafiltration to recover unused paint. You routinely achieve greater than 95% transfer efficiency. This radically reduces toxic chemical waste. It significantly lowers your ongoing consumable costs.
Chemistry selection dictates your final product outcome. You must choose resins carefully based on your application.
Epoxy Resins: These represent the gold standard for chemical resistance. They offer extreme baseline corrosion protection. Manufacturers usually use them as a primer layer. They lack UV resistance and will fade outdoors.
Acrylic Resins: These provide excellent UV stability. They resist yellowing over extended time periods. You should select acrylics for single-coat exterior applications. Agricultural equipment often uses acrylics.
Engineers frequently debate between these two common industrial finishes. They serve different functional purposes. Understanding their contrasts helps clarify your manufacturing strategy.
Durability and Wear: Powder coating yields a notably thicker finish. It resists deep scratches. It handles heavy exterior blunt-force abuse exceptionally well. In contrast, electrophoretic coating provides a thinner, highly cohesive bond. It optimizes moisture and salt barrier protection. It does not absorb blunt-force impact well.
Coverage Uniformity: Powder coating struggles inside complex geometries. The Faraday cage effect repels charged dry powder from deep corners. You often find bare metal inside welded boxes. E-coat excels precisely in these enclosed areas. The liquid immersion forces paint into every hidden cavity seamlessly.
Synergistic Use: These two technologies are not mutually exclusive. Many manufacturers combine them for premium results. They apply the immersion bath as a high-adhesion, anti-corrosion primer. Next, they apply powder coating over it. This dual-layer approach delivers a durable, UV-resistant topcoat over an impenetrable rust barrier.
Feature | Electrophoretic Coating | Powder Coating |
|---|---|---|
Typical Thickness | 15 μm – 30 μm (Thin, uniform) | 50 μm – 150 μm (Thick, variable) |
Corrosion Resistance | Exceptional (Penetrates deep cavities) | Good (Vulnerable at sharp edges) |
Impact Resistance | Moderate (Prone to scratching) | Excellent (Highly durable) |
Complex Geometry Coverage | Superior (No Faraday cage effect) | Poor in deep corners and recesses |
UV Stability | Low (Epoxy) to Moderate (Acrylic) | High (Excellent outdoor weatherability) |
Building trust requires transparently discussing where processes fail. No single manufacturing method fits every scenario. Understanding the limitations prevents costly production errors.
Substrate Exclusions: The process absolutely requires an electrically conductive substrate. You cannot use it on porous materials. Untreated composites and woods will simply not work. Non-conductive plastics also reject the electrical process entirely. You must coat bare metals.
Thermal Sensitivity: Curing the paint requires intense high-temperature baking. Ovens typically run between 160°C and 200°C. This severely limits usage on heat-sensitive alloys. You cannot coat components housing pre-installed rubber. Plastic seals will melt rapidly during the bake cycle. You must apply the finish before final assembly.
Aesthetic Flexibility: This method remains primarily functional. Color options are quite rigid. The vast majority of global baths run black, grey, or white. Formulating custom colors requires massive bath volumes. If you need vibrant colors, you must look elsewhere. Powder or liquid paints offer massive, easily changeable color libraries.

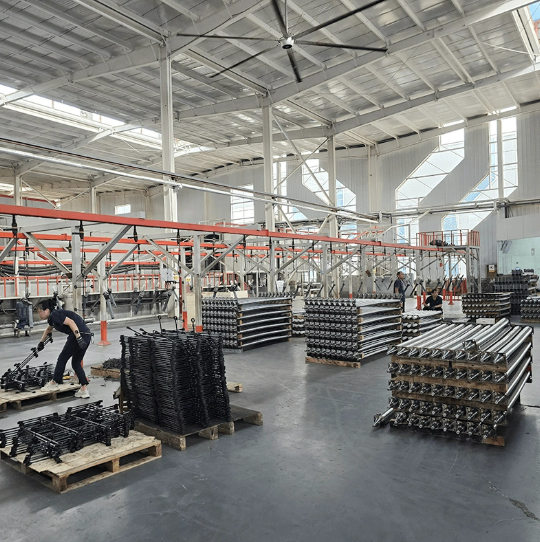

Adopting this technology requires serious operational planning. A full electrophoretic coating line involves substantial upfront capital expenditure. You must invest heavily in massive tanks. You need powerful rectifiers. You must install complex ultrafiltration loops. However, high-volume production quickly offsets this initial hit. The per-part operational expenditure drops incredibly low. The exceptional material yield makes it highly economical at scale. It outperforms traditional spray booths in mass production.
Quality assurance ensures long-term viability. Industry-standard tests verify coating integrity. You must subject random production samples to rigorous protocols.
ASTM B117 (Salt Spray Testing): This is the definitive global benchmark. It proves long-term corrosion resistance in extreme environments.
Pin and Swell Testing: Engineers use this to verify consistent coating penetration. It ensures hollow structures receive adequate internal protection.
Taber & DIN Abrasion Tests: These measure physical wear resistance. They confirm the cured film can handle operational friction.
To maximize success, watch out for common integration mistakes:
Skipping thorough pretreatment steps, leading to widespread adhesion failures.
Ignoring voltage calibration, which causes pinholing or uneven film builds.
Failing to maintain ultrafiltration membranes, severely dropping your material yield.
Overloading racks, which alters the electrical current distribution and harms uniformity.
Deciding on a finishing process impacts product lifespan heavily. We recommend this technology for specific, high-stakes manufacturing scenarios. Follow these actionable steps to move forward:
Shortlist for Complexity: Choose this process for high volumes of complex, multi-cavity metal parts.
Maintain Tolerances: Rely on it when strict dimensional tolerances are absolutely critical to assembly.
Maximize Defense: Use it to achieve extreme corrosion resistance in harsh, wet environments.
Audit Geometries: Review your parts for Faraday cage risks where standard spray paints fail.
Consult Experts: Run small-batch prototype testing before fully scaling up your factory floor.
A: Yes. The coating on the friction surface wears off immediately during use. However, the true value lies in protecting the internal cooling vanes and the rotor hat from rust. In heavy snow and salt environments, protecting these hidden internal structures maintains proper heat dissipation. This prevents premature structural failure.
A: Yes, particularly acrylic-based variations. Acrylics handle outdoor exposure reasonably well. However, epoxy-based formulations lack UV stabilizers. They will chalk and degrade if exposed to direct sunlight. Therefore, epoxy versions are best utilized for internal components like engine bays, chassis, or as a high-adhesion primer beneath powder coats.
A: Both processes use electricity, but they deposit entirely different materials. Electroplating deposits metallic ions, such as zinc, nickel, or chrome, directly onto the substrate. Conversely, electrophoretic systems deposit organic paint and resin molecules. One yields a metallic finish, while the other yields a protective, painted polymer barrier.
