Views: 0 Author: Site Editor Publish Time: 2026-06-03 Origin: Site
While the phrase "what is the meaning of a coating production line" implies a basic definition, industrial decision-makers are actually looking for what it means for their manufacturing bottom line. You might picture simple conveyor belts and manual spray guns. Technically, a coating line is an automated, integrated series of operations. It spans pre-treatment, application, flash-off, and curing. It is designed to apply protective or aesthetic finishes to substrates. However, modern systems operate as sophisticated, closed-loop, data-driven assets. They are built specifically to reduce chemical waste. They eliminate manual handling defects entirely. They also achieve near-perfect material transfer efficiency.
This guide breaks down core equipment components and advanced automation capabilities. You will learn about innovative 3D scanning and continuous accumulators. We detail the strict evaluation frameworks necessary for shortlisting equipment vendors. You will discover exactly how to optimize your industrial setup for long-term operational success.
Comprehensive Integration: A true coating production line unites pre-treatment, application, and curing into a single continuous or batch workflow, reducing manual labor dependency and cycle times.
Material & Cost Efficiency: High-end powder coating lines can achieve 95%–98% powder recovery and feature zero-emission closed-loop wastewater systems.
Automation Agility: Technologies like continuous coil accumulators and 3D-scanned robotic application allow lines to handle both endless miles of flat metal and complex, irregularly shaped 3D parts.
Strategic Procurement: Evaluating a line requires looking beyond the initial CapEx to assess modularity, utility consumption, and ease of future layout reconfiguration.
Manual or outdated batch spraying leads to inconsistent film thickness. It causes high reject rates. It also drives up excessive labor costs. We define the production line as a critical risk-mitigation tool. It standardizes quality control across your entire facility. It aligns perfectly to strict ISO 9001 compliance standards. You remove human error from hazardous environments entirely. This transition protects your workforce. It also shields your profit margins from unpredictable rework expenses.
This operational shift provides immense value across two primary vectors:
Physical Protection and Aesthetics: A high-quality coating production line ensures consistent corrosion resistance. It offers superior wear protection against harsh environmental factors. It guarantees brand-accurate color matching on every single part. Consistent finishes build consumer trust. They elevate the perceived value of your manufactured goods.
Throughput Economics: Shifting from manual transfer to automated flow drastically increases output. You see significantly higher parts-per-hour metrics. At the same time, you reduce volatile organic compound (VOC) exposure risks. Automated systems apply paint or powder much faster. They do not require breaks. They maintain identical application speeds throughout a twenty-four-hour cycle.
You must view this equipment as a strategic asset. It shifts your facility from reactive manufacturing to proactive quality assurance.
The process begins by preparing the substrate thoroughly. Dedicated modules perform sandblasting, degreasing, and phosphating. Chemical etching removes impurities effectively. Paint cannot adhere to greasy or dusty metal. You must clean the surface down to the microscopic level. Phosphating creates a micro-crystalline layer on the metal. This layer grips the incoming paint aggressively.
When evaluating these systems, look for cascaded water replenishment. Check for advanced oil-water separators. These components maintain chemical bath integrity over long periods. They prevent oil buildup on part surfaces. Superior pre-treatment is the only reliable safeguard against premature coating delamination. If you skip proper pre-treatment, even the best powder will eventually flake off.
Application equipment dictates your final finish quality. Powder systems use electrostatic spray deposition (ESD). The equipment charges powder particles positively. It grounds the metal substrate negatively. This creates a strong magnetic attraction. Liquid systems rely on automated high-precision spray guns. They atomize fluid paints using highly controlled air pressure.
You must assess material transfer efficiency carefully. Features like automated powder proportioning mix virgin and reclaimed powder seamlessly. These capabilities directly impact your daily operating metrics. High transfer efficiency means less wasted material on the booth floor.
Application Technology | Core Operating Principle | Key Efficiency Metric |
|---|---|---|
Powder Coating | Electrostatic Spray Deposition (ESD) | Up to 95%–98% powder recovery via automated proportioning. |
Liquid Coating | High-Precision Automated Spray Guns | Controlled fluid dynamics for ultra-thin, smooth film builds. |
Ovens finalize the coating process permanently. They cross-link polymer molecules via heat for metal substrates. They use UV light arrays for heat-sensitive substrates like wood or plastics. Proper curing transforms a fragile powder layer into a highly durable armor.
Evaluate thermal efficiency strictly. Look for multiple low-power fan matrices. They ensure uniform heat distribution far better than single high-power fans. Single fans often create hot and cold spots. Uneven heating causes severe discoloration. It also weakens the chemical bond. Waste-heat recovery systems are also crucial. They capture exhaust heat continuously. They redirect it back into the primary heating chamber. This loop lowers your monthly energy consumption dramatically.
Conveyors move parts smoothly between each processing stage. Common options include suspended, floor-fixed, or skid conveyors. The system must carry parts at a perfectly constant speed. Any jerking motion ruins the finish layer instantly.
Your conveyor choice must match your facility footprint precisely. It must also accommodate your substrate weight and geometry. Heavy automotive parts require robust floor-fixed skids. Lightweight aluminum extrusions often use suspended overhead tracks. Choose the system carefully. It forms the mechanical backbone of your entire operation.

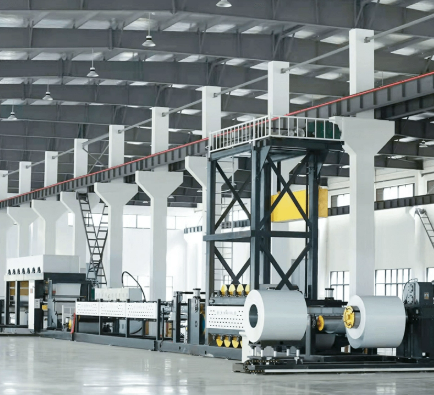

Engineers face a unique operational problem in modern steel mills. How do you coat miles of flat metal coil without stopping the line to weld a new roll? Stopping the line ruins the finish on the metal lingering inside the oven.
The solution relies on highly specialized accumulators. A serpentine layout of massive rollers stores a 60-second mechanical buffer of raw metal. This ingenious mechanism allows the entry section to stop completely for splicing. Meanwhile, the main processing section runs steadily. It pulls metal continuously from the accumulator reserves.
Once the weld finishes, overspeed functions activate. The entry section runs faster than the processing section momentarily. It refills the accumulator quickly. This yields up to 10x the efficiency of standard batch systems. It produces nearly zero paint loss. It represents a true marvel of continuous industrial manufacturing.
Automating the coating of complex geometries presents another massive challenge. Furniture legs, automotive panels, and protective helmets feature deep recesses. Traditional automated guns struggle to reach these areas. They usually require expensive manual touch-ups.
Floor-fixed modular systems integrated into a coating line solve this issue beautifully. They use advanced 3D scanners. As the part enters the booth, scanners read the exact 3D geometry. They feed this spatial data to programmable robotic arms instantly.
These robotic arms execute dynamic spray trajectories automatically. They tilt and angle the spray nozzle to penetrate deep corners. They adjust their distance based on the scanner data in real-time. They eliminate manual handling flaws completely. This level of automation guarantees perfect film thickness across every single curve.
You must maintain extreme transparency regarding long-term operational assumptions. Upfront equipment costs represent a small fraction of the 15-to-20-year operational lifecycle. Energy bills, chemical supplies, and labor hours dictate the vast majority of your resource consumption over time.
You should validate vendor claims on resource recovery strictly. Demand verifiable 95%+ powder recovery rates. A poorly designed cyclone separator wastes thousands of dollars in lost powder annually. Insist on zero-discharge closed-loop tunnels for wastewater management. Closed-loop systems filter and reuse wash water continually using chemical flocculation. This prevents toxic discharge entirely. It ensures environmental compliance automatically.
Advocate for bolted, modular line configurations. Choose them over permanently welded steel structures. Modularity significantly lowers future reconfiguration expenses. It simplifies plant expansions when your volume grows. You can unbolt sections and insert new modules easily without destroying the original frame.
Component reliability is equally important to modularity. Check for industry-standard electronics and heavy-duty motors. Demand components from reputable global brands like Siemens or ABB. This requirement ensures global parts availability. If a motor burns out, you can source a replacement locally. It prevents costly production downtime while waiting for obscure international shipments.
Follow these vendor evaluation best practices during procurement:
Validate powder recovery percentages directly through verified case studies.
Demand modular, bolted structural configurations instead of welded frames.
Confirm the inclusion of industry-standard electronic components.
Review closed-loop wastewater management designs for zero fluid discharge.
Implementing a full system requires rigorous project management. You cannot simply drop machines onto a factory floor. You must follow a sequential engineering framework to guarantee success.
Phase 1: Needs Assessment and Layout: Begin by mapping linear workflows from raw infeed to final packaging. Factor in exhaust routing carefully. Plan for hazardous material containment explicitly. Always measure facility ceiling heights. Suspended conveyors need substantial vertical clearance. Ensure the layout prevents raw materials from crossing paths with finished goods.
Phase 2: Quality Control Integration: Specify inline quality sensors early in the design phase. Include digital gloss meters and laser thickness gauges. They must feed real-time data back to the central PLC. The system can then adjust spray parameters dynamically. If the film gets too thin, the PLC increases fluid pressure automatically.
Phase 3: Safety and Compliance: Ensure all operational protocols align strictly to regional environmental regulations. Monitor VOC emissions closely using specialized sensors. Standardize worker PPE requirements around the loading zones. Implement fire-suppression systems inside the spray booths. Safety must dictate the baseline engineering.
Phase 4: Lean Optimization: Apply Six Sigma or Lean Manufacturing principles during the final commissioning phase. Map the actual cycle times against your theoretical projections. Identify any physical throughput bottlenecks. Eliminate them systematically by adjusting conveyor speeds or oven temperatures. Continuous improvement starts on day one.
Understanding the true meaning of a coating production line requires a broad operational perspective. It means recognizing it as an interconnected workflow ecosystem. It is never just a series of isolated spray machines. Every module relies on the precise performance of the previous stage.
Follow these actionable next steps to secure a reliable system:
Prioritize vendor engineering transparency over the lowest initial bid.
Demand verifiable performance data for powder recovery and energy use.
Insist on modular construction to guarantee future layout flexibility.
Incorporate 3D scanning technology if you process complex 3D geometries.
We strongly encourage you to request a custom layout assessment from specialized engineers. Schedule a comprehensive facility audit today. You can calculate your projected resource recovery rates accurately. You will determine the exact line configuration best suited for your specific production volume.
A: Batch lines process parts individually or in small manual groups. They are highly flexible. They remain ideal for varied, low-volume production runs. Continuous lines use automated conveyors and mechanical accumulators. They move parts without stopping. They provide uninterrupted, high-volume, and highly uniform production for massive manufacturing outputs.
A: A well-engineered system offers exceptional operational longevity. With high-quality materials like stainless steel heat exchangers and heavy-duty wash tunnels, it runs reliably for decades. Routine preventative maintenance extends this timeframe further. You can expect a standard operational lifespan of 15 to 20 years under normal industrial conditions.
A: Yes. Expert engineers can design specific floor-fixed solutions to save room. Compact, vertical curing ovens maximize available vertical space easily. Custom-routed overhead conveyors weave around existing columns. They fit tight footprint constraints perfectly without ever sacrificing your daily output volume or your final finish quality.
