What Is The Purpose Of Electrophoretic Coating?

Manufacturers constantly face the challenge of protecting complex metal parts from corrosion while maintaining tight production budgets. Many traditional surface finishing methods simply fail to reach deep internal cavities. This leaves hidden surfaces exposed to severe rust and degradation. Adopting an electrophoretic coating process acts as a strategic manufacturing decision. It is explicitly designed to solve these high-volume corrosion and material waste challenges. Transitioning to this automated method requires balancing significant upfront capital with long-term unit cost reductions. The initial investment in tanks and rectifiers pays off through extreme material efficiency. However, it requires careful engineering planning.

We designed this guide to provide production managers, engineers, and supply chain leaders with an objective evaluation framework. You will learn how this process engineers uniform protection and integrates into factory environments. We will also explore if it aligns with your physical product requirements and operational scale. By understanding the underlying chemistry and mechanics, you can confidently upgrade your finishing operations.

Key Takeaways

• The primary purpose of electrophoretic coating is to deliver uniform, self-limiting anti-corrosion protection, specifically targeting complex geometries and internal cavities that traditional spray methods miss.

• An optimized electrophoretic coating line can achieve over 95% material utilization due to closed-loop ultrafiltration systems, drastically lowering high-volume production costs.

• Process stability relies heavily on strict bath management, requiring precise control over pH, voltage, and water conductivity (ideal pure water <5-10μs/cm).

• While e-coating excels in rust prevention (often acting as a foundational primer), it is typically paired with powder coating when high UV resistance or mechanical impact protection is required.

The Core Purpose: Engineering Uniformity and "Throwpower"

What exactly drives manufacturers to abandon traditional spraying? The defining purpose of electrophoretic coating is its unmatched ability to protect internal, hidden, or highly complex structures. Think of automotive chassis assemblies, intricate valve bodies, or the cooling vanes inside brake rotors. Liquid sprays simply cannot navigate these intricate pathways. Spray droplets travel in straight lines and miss overlapping metal joints. This electrical deposition method relies on a critical concept called "throwpower." Throwpower measures how deeply the charged paint particles penetrate into deep recesses, tubes, and dead-ends. High throwpower ensures the deepest cavities receive the exact same level of rust protection as the exterior faces.

The magic behind this uniformity lies in a "self-limiting" mechanism. The applied paint film fundamentally acts as an electrical insulator. When the raw metal part enters the electrified bath, the paint particles rush to the most accessible exterior surfaces first. However, once the surface achieves a specific, micrometer-level thickness—typically between 0.1 to 0.2 mils—the electrical resistance at that spot spikes. This localized resistance automatically redirects the electrical field and the deposition process to the remaining uncoated areas. You get perfect coverage everywhere, even inside tight corners.

This electrically driven deposition eliminates costly human error. Manual or electrostatic spray systems rely heavily on operator skill or direct line-of-sight access. They often produce thick pooling at the bottom of parts, visible drip marks, and highly inconsistent film builds. In contrast, e-coating ensures precise, repeatable thickness across every single millimeter of your product.

Electrophoretic Coating vs. Powder Coating: A Decision Framework

Engineers often debate between choosing e-coat or powder coat for new product lines. You must understand their different core functions to choose correctly. Powder coating provides thick, mechanically hard, and highly UV-resistant surfaces. Conversely, electrophoretic coating provides thin, highly adhesive, and deeply penetrative anti-corrosion layers. They solve completely different engineering problems.

Consider these three evaluation dimensions when assessing your project:

• Coverage: Choose e-coat for intricate dead-ends, structural tubes, and multi-surface internal cavities. Use powder coating for broad, exterior-facing surfaces where visual aesthetics and scratch resistance matter most.

• Durability Nuance: Epoxy-based e-coats aggressively prevent rust creepage underneath scratches. If a rock chips the surface, the rust will not spread laterally under the paint. Powder coats, however, excel at resisting the physical impact of the rock itself.

• Operational Footprint: An electrophoretic coating line generally requires less actual floor space for the application zone but mandates complex, multi-tank bath management. Powder systems avoid liquid chemistry but require much larger curing ovens and bulky dust recovery infrastructure.

Many top-tier automotive and industrial applications refuse to compromise. They use a powerful hybrid approach. They deploy e-coat as the ultimate protective primer layer. They then apply powder coating directly over it as the aesthetic, weather-resistant topcoat. This dual-layer strategy delivers the absolute highest standard of field durability.

Assessing Chemistry and Polarity: Anodic vs. Cathodic E-Coat

When designing an electrophoretic coating line, you must carefully navigate two fundamental chemical pathways. The electrical polarity you choose dictates the final performance of the coated product. We must guide decision-makers through this crucial technical selection.

First, consider Anodic e-coating. In this setup, the metal part acts as the anode, holding a positive charge.

• Pros: It offers a significantly lower operational cost. The process control remains much simpler than its counterpart. Furthermore, it provides highly aesthetically pleasing finishes for specific indoor applications, like appliance brackets.

• Cons and Risks: The acidic nature of the anodic process presents a major drawback. It can inadvertently dissolve microscopic amounts of the phosphate conversion layer on the substrate. This chemical reaction slightly compromises the maximum corrosion resistance of the metal part.

Next, consider Cathodic e-coating. Here, the part serves as the cathode, holding a negative charge. This method currently dominates roughly 70% of the industrial and automotive market worldwide.

• Market Reality and Pros: You get zero base-metal oxidation during the deposition phase. Because the metal part does not dissolve, the zinc-phosphate layer remains completely intact. This results in exceptional, heavy-duty anti-corrosion performance.

• Resin Sub-Types: Cathodic systems predominantly use two main resin types. Epoxy resins deliver maximum corrosion defense but suffer from poor UV resistance, causing them to chalk in sunlight. Acrylic resins remain UV stable and non-yellowing. Acrylic serves perfectly as a durable one-coat finish for agriculture or construction equipment stored outdoors.

Implementation Realities: Integrating an Electrophoretic Coating Line

Building an industrial wet-coating facility involves rigid structural and chemical parameters. You cannot skip or minimize the foundational equipment if you want reliable results.

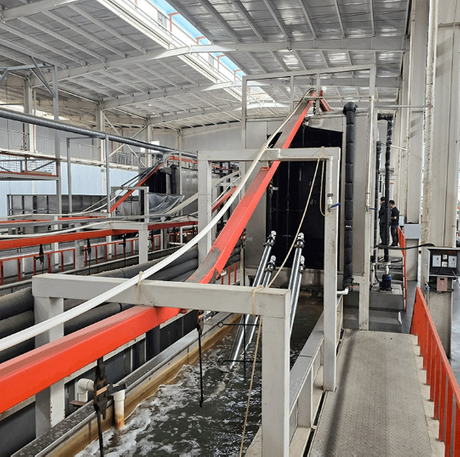

Every standard electrophoretic coating line utilizes a strict, non-negotiable four-stage architecture:

1. Pretreatment: Parts undergo intensive alkaline cleaning and zinc-phosphating. This prepares the metal surface and creates a micro-crystalline layer for paint adhesion.

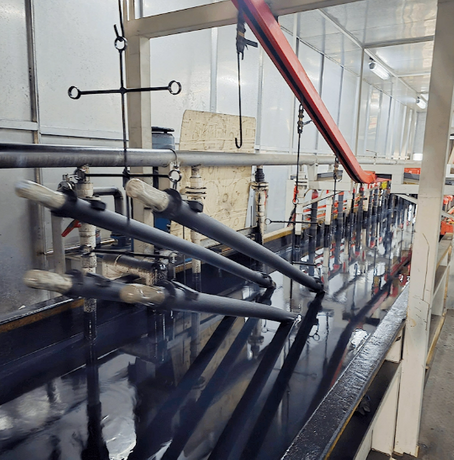

2. Deposition: Products submerge into the chilled, DC-powered paint bath. The paint particles adhere electrically to the grounded metal.

3. Post-Rinse: Highly efficient ultrafiltration systems capture the wet part. They wash off unadhered paint and return it to the main tank.

4. Curing: High-temperature bake ovens cross-link the polymers. This permanently hardens the wet film into a solid plastic layer.

Long-term success requires strict bath management and a deep understanding of operational risks. Implementation expertise centers on precise daily control.

First, operators must respect voltage limits. Systems typically operate between 25 and 400V DC. Exceeding these limits to force higher throwpower into stubborn cavities risks film rupture. Rupture creates severe porosity and ruins the finish. Second, you must tightly control the bath chemistry daily. Maintain paint solids strictly between 10-12%. Keep the pH balanced; for example, a narrow window of 4.2-4.5 works best for standard cathodic systems. Solvent levels should hover around 3-5% to ensure the resin remains soluble.

Finally, monitor the invisible threat: incoming water quality. Pure water conductivity must remain strictly maintained under 10μs/cm. Poor water introduces unwanted ionic impurities. These impurities cause violent electrical reactions, pinpoint defects, craters, and ultimately, severe paint delamination.

Quantifying Success: Yield, Compliance, and ROI

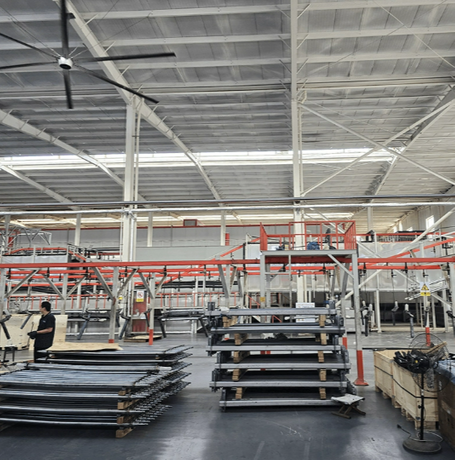

An automated electrophoretic coating line transforms raw materials into finished goods with astonishing efficiency. Your material yield directly impacts your competitive pricing and factory bottom line.

Let us examine material efficiency closely. The financial impact of a zero-overspray environment is massive. Traditional liquid spray methods frequently waste up to 40% of their purchased paint in the exhaust air. E-coat systems eliminate this through a closed-loop ultrafiltration (UF) recovery process. The post-rinse stages capture any loose, unadhered paint droplets. The UF system separates the water from the pigment and recycles the expensive paint solids back into the active bath. This continuous loop validates the industry standard claim of achieving over 95% transfer efficiency. You buy paint, and almost all of it ends up on the product, not in a waste drum.

You must also view this technology through environmental and compliance lenses. Water-based, low or zero-VOC e-coat chemistries drastically simplify regulatory compliance. They easily meet stringent EPA and OSHA air quality standards compared to heavily solvent-based liquid paints. Your facility avoids massive regulatory fines, minimizes worker exposure, and eliminates the need for expensive thermal oxidizers or air scrubbing equipment.

Finally, consider multi-metal adaptability. Factory managers gain a significant throughput advantage here. You can process completely different substrates through the exact same bath. Cold-rolled steel brackets, extruded aluminum heat sinks, and zinc-plated fasteners can run back-to-back on the line. You do not need to switch bath chemistry, drain tanks, or halt production. This immense flexibility maximizes factory output and ensures a fast return on your initial capital investment.

Conclusion

The purpose of electrophoretic coating extends far beyond simple aesthetics. It provides high-volume, automated risk mitigation against severe corrosion.

• It targets and protects internal cavities with uniform precision.

• It delivers over 95% material efficiency through closed-loop ultrafiltration.

• It requires precise bath chemistry and pure water controls to succeed long-term.

• It integrates seamlessly as a tough primer beneath powder coats for dual protection.

Before finalizing a vendor or line design, decision-makers should take proactive next steps. Always request sample testing on your most geometrically complex parts. Demand objective validation like standardized salt spray endurance and Pin and Swell testing. These steps ensure the chosen chemistry perfectly matches your field requirements.

FAQ

Q: Is electrophoretic coating worth it for parts subjected to high friction?

A: Yes, but with a caveat. For parts like brake rotors, the e-coat on the friction surface will wear off immediately upon use. However, the true value lies in protecting the non-friction areas (like internal cooling vanes) from rust, particularly in highly corrosive environments (e.g., road salt), which drastically extends the part's lifespan.

Q: How do you objectively test the strength of an e-coat?

A: Industry standards include mechanical abrasion testing (Taber or DIN rubber wheel tests), chemical resistance testing, and environmental endurance (standardized salt spray testing).

Q: Can heat-sensitive materials undergo e-coating?

A: Generally, no. While the bath application occurs at near ambient temperatures (e.g., 26-28°C), the required curing stage involves baking at high temperatures (often requiring a pre-bake at 70-80°C followed by a full cure at 170°C+). This disqualifies most plastics and heat-sensitive alloys unless specialized low-cure chemistries are utilized.
